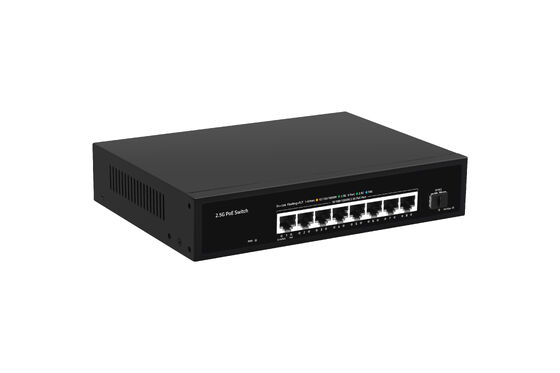

Olycom 8 Port 1G/2.5G/10G PoE Network Switch
1. Product Overview
The OM1X88(2)-PSE-GE is a high-performance hybrid-rate Ethernet PoE switch designed for modern access networks that require higher bandwidth and simplified power deployment. It features 8 × 10/100/1000/2500Mbps PoE ports and 1 × 10G SFP uplink, enabling seamless connectivity from legacy Fast Ethernet devices to multi-gigabit and 10G backbone networks.
Built with a fanless silent design and high-speed intelligent switching chipset, the OM1X88(2)-PSE-GE delivers stable, low-noise operation ideal for offices, commercial environments, and edge network deployments. With an integrated AC100–240V internal power supply and IEEE 802.3af/at PoE support, it provides reliable data and power transmission in a compact, easy-to-maintain form factor.
2. Key Features
8 × Multi-Gigabit PoE Ports – Supports 10/100/1000/2500Mbps auto-negotiation with IEEE 802.3af/at PoE output.
10G SFP Uplink – High-speed fiber uplink for aggregation to core switches or data centers.
100W Total PoE Budget – Adequate power capacity for IP cameras, wireless APs, and access devices.
Fanless Silent Design – Eliminates noise and improves reliability in office and indoor environments.
Wide Protocol Compatibility – Supports IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, and 802.3x standards.
PoE QoS Priority Control – Automatic PoE priority assignment (levels 1–8) to protect critical devices.
High Switching Performance – 60Gbps switching capacity and 44.64Mpps forwarding rate ensure smooth traffic flow.
Industrial-Level Protection – Built-in surge protection (4KV common mode, 2KV differential) and ESD protection up to 12KV air.
Easy Monitoring – Clear LED indicators for link status, speed, PoE activity, and power usage.
3. Technical Data
|
Product Name
|
9 Port Hybrid Rate Ethernet PoE Switch
|
|
Port
|
8*100/1000/2500M PoE port(Support MDI/MDIX, auto-sensing)
1*10G SFP Port
|
|
Switching Capacity
|
60Gbps
|
|
Throughput
|
44.64Mpps
|
|
MAC Address
|
4K
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network protocol
|
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE 802.3bz (5G Ethernet)
IEEE 802.3z (Gigabit Ethernet)
IEEE 802.3ae (10G Gigabit Ethernet)
IEEE802.3x (Flow Control)
|
|
PoE Protocol
|
IEEE802.3af(15.4W)
IEEE802.3at(30W)
|
|
PoE Wiring
|
1/2(+), 3/6(-)
|
|
PoE Output Voltage
|
DC44-57V
|
|
PoE Budget
|
100W
|
|
Industry Standard
|
EMI: FCC Part 15, CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-5(Surge)
|
|
Network Medium
|
10Base-T: Cat3,4,5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Optical Medium
|
multi mode: 50/125, 62.5/125, 100/140um
Single mode: 8/125, 8.7/125, 9/125, 10/125um
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Power
|
Power Input Voltage: AC100-240V
Internal AC-DC Converter: 52V1.92A
|
|
LED Indicators
|
PWR(Power indicator)
On: power on
Off: no power
1-8 Port green light
On: 2.5G Link connect normal
Off: Link off
Flashing: data transmitting
1-8 Port yellow light
On: 10/100/1000M Link connect normal
Off: Link off
Flashing: data transmitting
9 Port green light/Blue Light
Blue on:10G link
Green on: 1000/2500M link
Off: Link blocked
Flashing: Data transmitting
1-8 PoE Light
On:PoE is working
Off:PoE is not working
PoE Max Power Light
On: indicates that PoE power is used at 95%<P<100%
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
Off: indicates PoE power usage is less than 90%
|
4. Application
The OM1X88(2)-PSE-GE is well suited for a wide range of commercial and enterprise networking scenarios, especially where multi-gigabit access and PoE power delivery are required:
-
IP Surveillance Systems – Powers and connects high-resolution IP cameras and NVRs with stable PoE and 10G fiber uplink.
-
Wireless Access Networks – Ideal for Wi-Fi 6 / Wi-Fi 6E AP deployments requiring 2.5G Ethernet and PoE+.
-
Hotels and Commercial Buildings – Supports room access switches, APs, and security devices with silent operation.
-
Campus Networks – Provides multi-gigabit edge access with high-speed fiber aggregation to core switches.
-
SME Networks – Cost-effective solution for small and medium-sized enterprises upgrading to multi-gigabit infrastructure.
5. Dimension
6. Packing Information
1pc switch
1pc power adapter
1pc user manual
1pair brackets
Shipping box information
Product size: 220*161*44mm
Inner box size: 315*215*85mm
Product weight: 0.91Kg
Packing weight: 1.23Kg
Master box size: 445*445*335mm
Packing quantity: 10Pcs
Packing weight: 13.3Kg
Remark
Accessories(optical module, patchcord etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Power adapter is included in BOTH the packing box AND unit pricing
