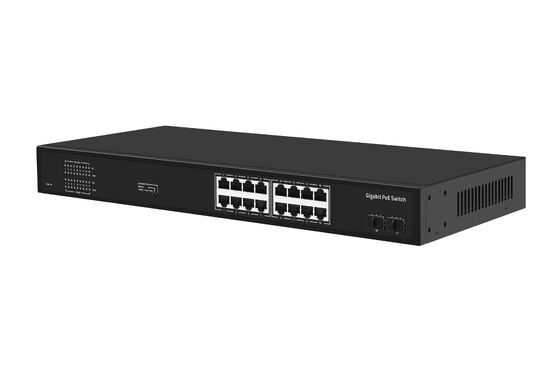

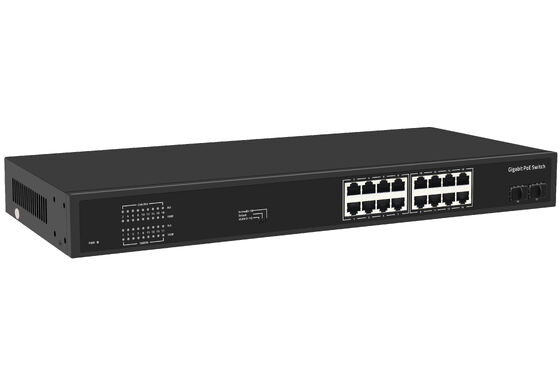

16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless

Product Name

18 Port 10/100/1000Mbps Ethernet PoE Switch

Port

16 Port 10/100/1000M PoE + 2 Gigabit SFP

Switching Capacity

36Gbps

Throughput

26.784Mpps

Packet Buffer

4M

MAC Address

8K

Jumbo Frame

9.6Kbytes

Transfer Mode

Store and forward

MTBF

100000 hours

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af(15.4W)

IEEE802.3at(30W)

PoE Wiring

1/2(+), 3/6(-)

PoE Budget

300W

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-5 (Surge)

Network Medium

10Base-T: Cat3,4,5 or above UTP(≤100m)

100Base-TX: Cat5 or above UTP(≤100m)

1000Base-TX: Cat5 or above UTP(≤100m)

Optical Media

Multi mode fiber : 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Certification

CE/FCC/RoHS

Working Environment

Working Temperature: -10℃~50℃

Storage Temperature: -40℃~70℃

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing

Power

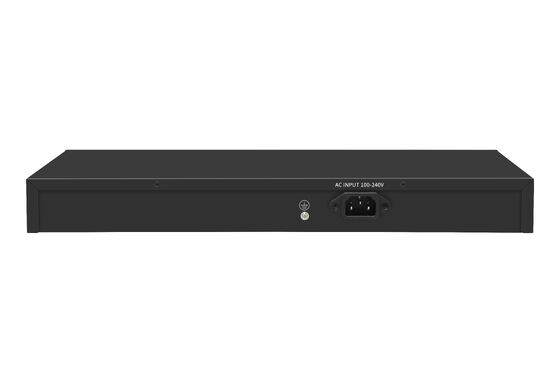

Power Input Voltage: AC100-240V
Internal AC-DC Converter: 52V5.76A

LED Indicators

PWR(Power indicator)

On: power on
Off: no power

1-18 ACT(Link&Data)

On: Connected

Off: Disconnected

Flashing: Data Transmitting

1-18 1000M(Link)

On: 1000M

Off: 10/100M

DIP Switch

VLAN: Port Isolation, 1-16 PoE ports are isolated each other and can only communicate with uplink port 17/18

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend: Link Extension Mode, 9-16 ports PoE and data transmission distance extended to 250 meters, the transmission rate becomes 10M/s
