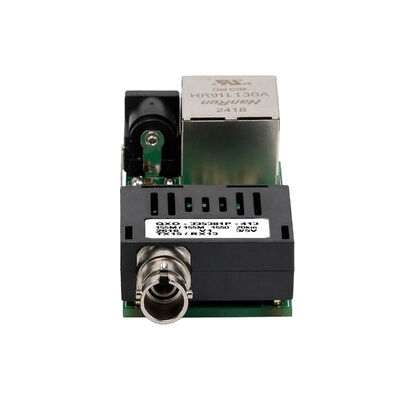

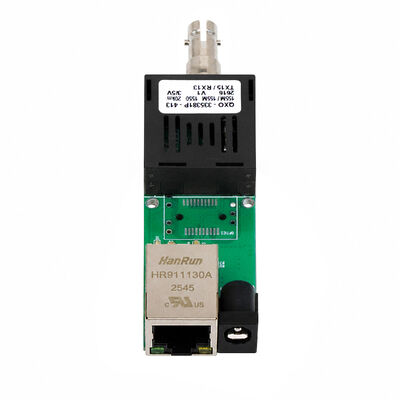

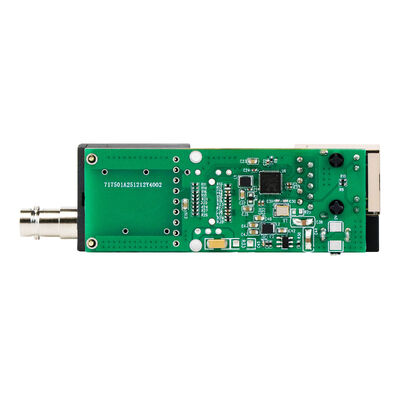

Ultra‑Compact 1‑Fiber 1‑Ethernet Media Converter for Drone & Mobile Data Links
Specification
|
Standard
|
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),
IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet)
|
|
10/100/1000BASE-T
|
STP or UTP Category 5/5e/6 cable (Max. 100m)
|
|
1000BASE-FX
|
9/125um singlemode fiber cable (20/40/60/80/100/120km)
|
|
Conversion Mode / Delay Time
|
Store-and-Forward < 10us, straight-through<0.9us
|
|
Flow control
|
Full duplex-flow control, Half duplex-back pressure
|
|
RJ-45 Port
|
Auto-MDI/MDIX
|
|
Fiber Port
|
FC/SC/ST/SFP slot, ALL OPTIONAL
|
|
Dimension
|
70x25x15mm
|
|
Input Voltage
|
DC5V-24V with External power adapter
|
|
Power Consumption
|
<1W
|
|
MAC Address Table
|
2K
|
|
Buffer Size
|
64K
|
|
Operating Temperature
|
0℃~70℃
|
|
Storage Temperature
|
-40℃~125℃
|
|
Storage Humidity
|
5%~90% non-condescending
|
Key Feature
- Wide voltage power supply 5-24V, compatible with a variety of batteries, ensuring stable operation
- Flexible communication distances and optical connectors
- Lightweight, compact size 70x25x15mm, reducing equipment burden and improving flight efficiency
- Realtek based, long-term supply and guaranteed performance
Application
- TA510-GE‑X is primarily used in tethered drone systems, serving as the sky‑end and ground‑end photoelectric conversion module to transmit high‑speed video, control, and telemetry data over reinforced Kevlar fiber cables.
- It supports rotary joints and slip rings for 360° rotation with stable fiber links, and works with motorized winding systems for automatic cable management.
- The module also fits compact mobile communication, industrial long‑distance Ethernet extension, and lightweight airborne data links, providing reliable, low‑latency, anti‑interference connections in compact, power‑constrained environments.
Ordering Options
|
TA210-FE/SC-A2
|
10/100M, Standalone, dual fiber, multimode, SC, 2km, external power supply
|
|
TA210-FE/SC-20
|
10/100M, Standalone, dual fiber, single mode, SC, 20km, external power supply
|
|
TA210-FE/SC-40
|
10/100M, Standalone, dual fiber, single mode, SC, 40km, external power supply
|
|
TA210-FE/SC-60
|
10/100M, Standalone, dual fiber, single mode, SC, 60km, external power supply
|
|
TA210-FE/SC-80
|
10/100M, Standalone, dual fiber, single mode, SC, 80km, external power supply
|
|
TA210-FE/SC-100
|
10/100M, Standalone, dual fiber, single mode, SC, 100km, external power supply
|
