Olycom 50-Port Gigabit Ethernet Switch for Modern Network Infrastructure
Specification
|
Product Name
|
50 Port 10/100/1000Mbps Rack Type Ethernet Switch
|
|
Port
|
48x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing)
2x1000M SFP Ports
|
|
Switching Capacity
|
100Gbps
|
|
Throughput
|
74.4Mpps
|
|
Packet Buffer
|
16M
|
|
MAC Address
|
32K
|
|
Jumbo Frame
|
12Kbytes
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network Protocol
|
IEEE802.3(Ethernet)
IEEE802.3u(Fast Ethernet)
IEEE 802.3ab(Gigabit Ethernet)
IEEE802.3x(Flow Control)
|
|
Industry Standard
|
EMI: FCC Part 15 CISPR(EN55032)class A
EMS: EN61000-4-2(ESD)
EN61000-4-5(Surge)
|
|
Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP( ≤100m)
100Base-TX: Cat5 or above UTP( ≤100m)
1000Base-TX: Cat5 or above UTP( ≤100m)
|
|
Optical Media
|
Multi mode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|

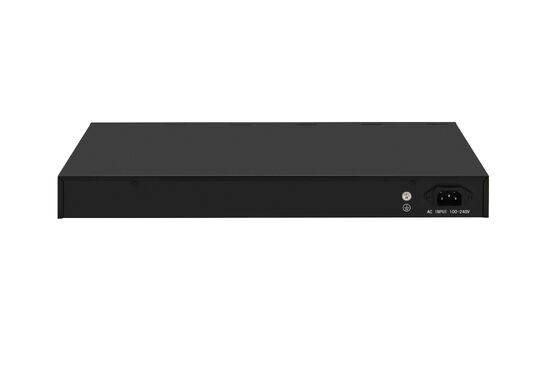

Input Voltage
|
AC100-240V, Single Power Input
Power supply: 12V4A
|
|
LED Indicators
|
PWR(Power indicator)
Lighting/Powered, Off/No-power
SYS(System Light)
On/The system is normal
Flashing/System startup in progress
Off/System not started
Link/Act(Link & Data)
Green On/1000M Link Connection Normal
Yellow On/10/100M Link Connection Normal
Flashing/Data Transmit
Off/Link Connection Blocked
|
|
VLAN Dialing
|
VLAN OFF/Off, all ports are interconnected
VLAN ON/enabled, ports 1-46 are isolated from each other and interconnected with ports 47-50
|
Introduction
The TA-7248GE is a high-performance rack-mounted Ethernet switch designed to meet the demands of modern network environments.
Equipped with an advanced intelligent chip and a fan-less silent design, it ensures stable operation while eliminating noise, making it ideal for office deployments.

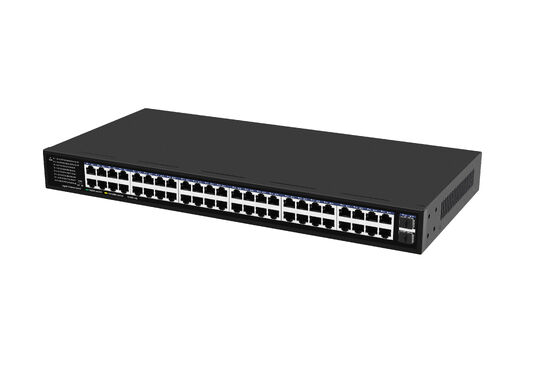

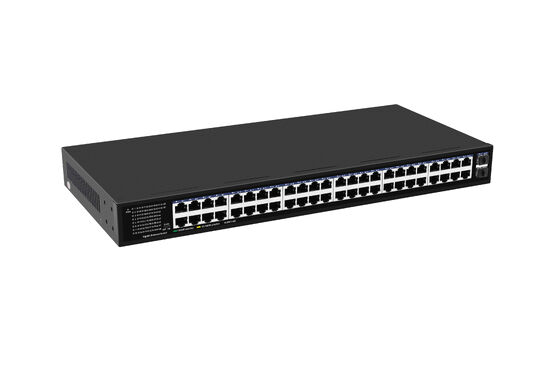

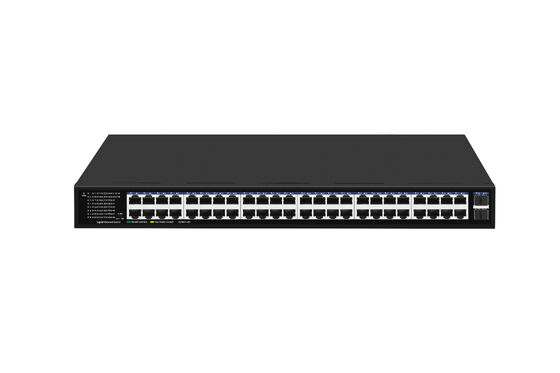

With 48 Gigabit RJ45 ports and 2 Gigabit SFP ports, the switch delivers seamless high-speed connectivity for various networking needs.
Feature
This switch supports 10/100/1000 Mbps adaptive Ethernet ports with auto MDI/MDIX functionality, ensuring flexible and efficient network integration.
It complies with IEEE 802.3, 802.3u, and 802.3ab standards, and includes essential features such as VLAN mode via dial switch, flow control for both full and half duplex, and loop detection alarms.
Additionally, it offers strong surge protection and clear LED indicators for real-time monitoring and fault diagnosis, making management and maintenance simple and reliable.
Application
The TA-7248GE is widely applicable across multiple scenarios, including security video surveillance systems, hotel networking, campus infrastructure, and small to medium-sized enterprise network projects.
Its high switching capacity and dependable performance make it an excellent choice for environments requiring stable, scalable, and efficient network connectivity.
Dimension
Packing Information
1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)
Shipping box information(Below information is approximately accurate)
Product size: 440*205*44.5mm
Inner box size: 500*290*85mm
Product weight: 2.83Kg
Packing weight: 3.37Kg
Master box size: 520*445*310mm
Packing quantity: 5Pcs
Packing weight: 17.85Kg
Remark
Accessories(optical module, patchcord etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Power cable is included in BOTH the packing box AND unit pricing
